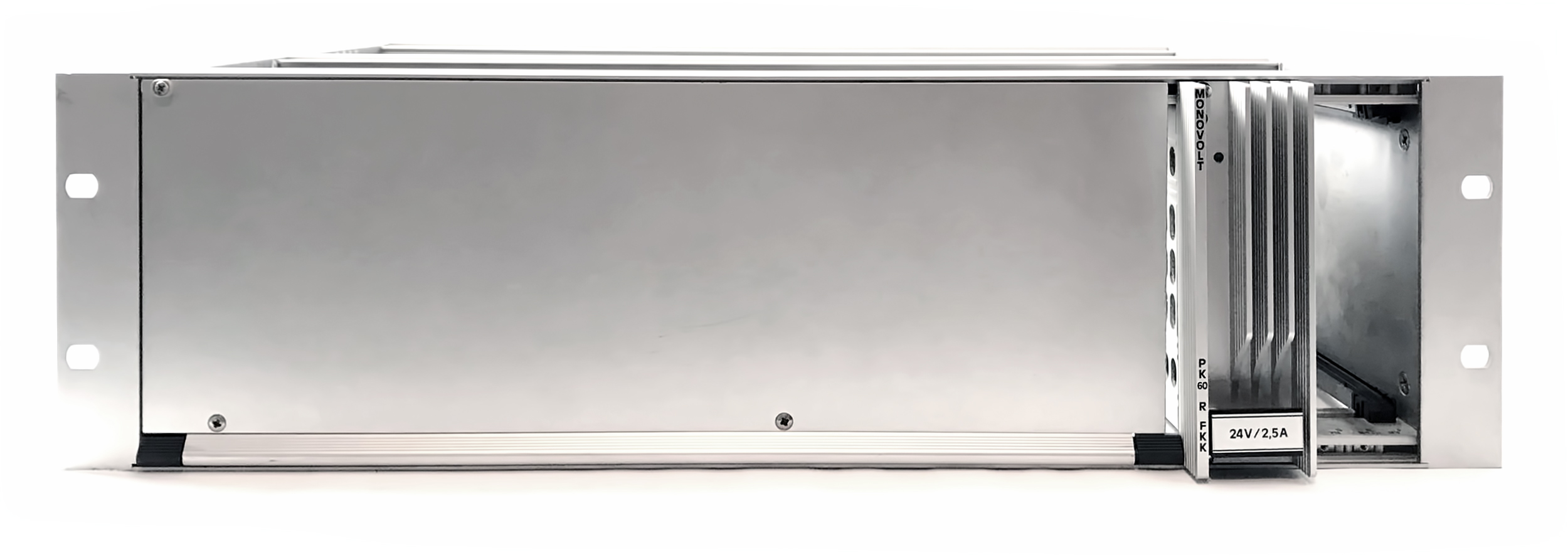

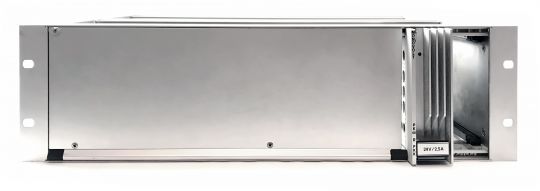

Custom DAVIS DV 7080 distribution amp rack

Product number: DIV80

Custom Custom made DAVIS distribution amp | 8:64

Weight: 10 kg
Only some items on stock - order quickly!

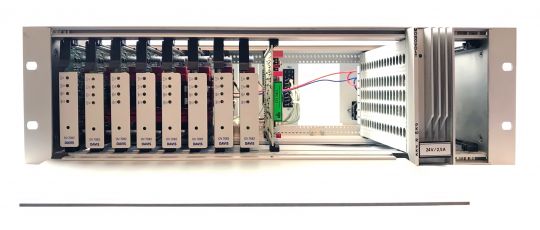

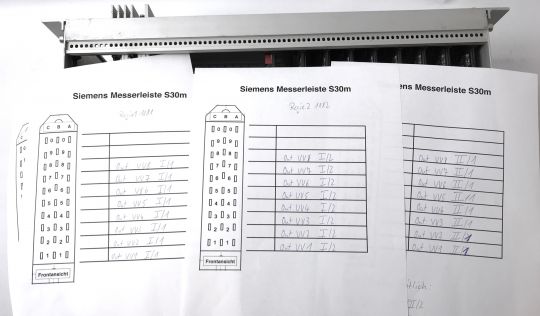

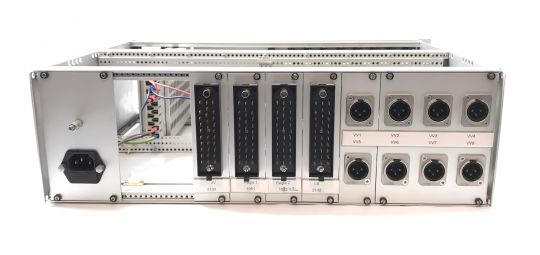

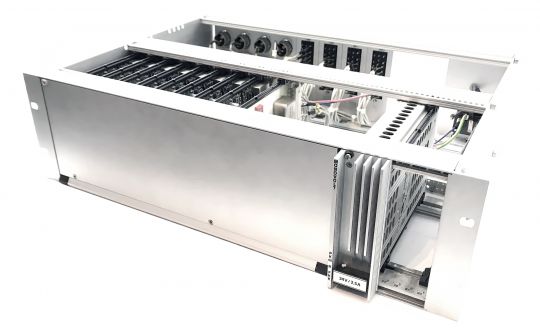

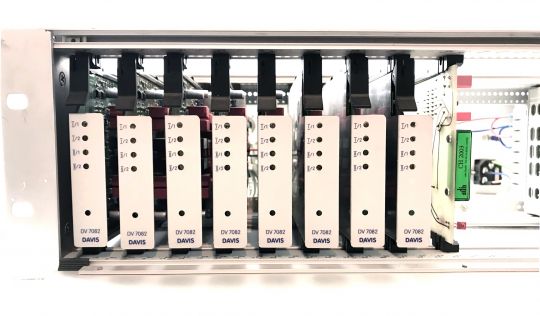

We are selling this custom made DAVIS DV 7080 distribution amp rack with internal psu. It was checked by our techs and works without any issues. Each of the eight internal amp cards offers reactionless distribution of one input (via XLR) to four outputs. Inputs and outputs are floating. The DV 7080´s excellent data enables operation even under strong requirements. The construction of the DV 7080 card is a PC board Eurosize C 1. It is operated in custom frames eg. S367, S368. The rack includes an internal 24V DC power supply with 2.5A current. It offers more than enough headroom to power many more vintage german broadcast modules and eurocards in your studio. You can dfind the Siemens connectors for the output signals on our website.

This rack is a plug and play solution which distributes eight input signals to 64 outputs. Each card has 1 input and 4 outputs.
