RTW 11520D Digital-Stereo-Peakmeter / AES/EBU

Product number: RTWdigi

Stereo-Peakmeter in a desktop enclosure with an integrated power supply

Weight: 1 kg
Only some items on stock - order quickly!
For sale is a professional digital RTW stereo peak meter in a desktop enclosure with an integrated power supply. The unit is designed for precise level monitoring of digital AES/EBU stereo signals in recording studios, broadcasting facilities and professional production environments.

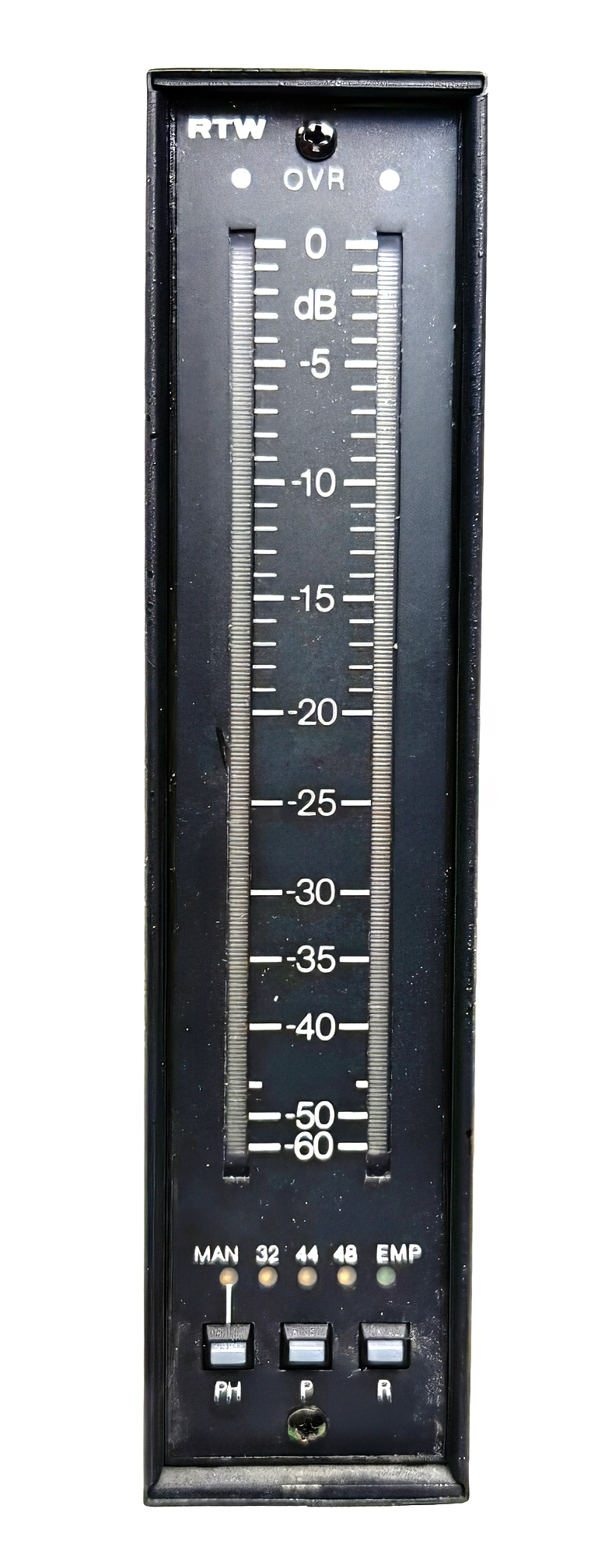

The two long gas-plasma bar graphs display the levels of both stereo channels from −60 to 0 dBFS. Separate overload indicators warn of digital clipping. The unit also displays the sample rate, word length and emphasis status of the incoming digital signal.
Features:
  • two-channel digital stereo peak meter

  • display range from −60 to 0 dBFS

  • two long gas-plasma bar graph displays

  • separate overload indicators for both channels

  • display for 32, 44.1 and 48 kHz sample rates

  • emphasis indicator

  • peak hold function

  • memory and reset functions

  • balanced digital AES/EBU input

  • digital AES/EBU loop-through output

  • selectable 110-ohm termination

  • remote connection

  • integrated power supply

  • switchable mains voltage between 115 and 230 V

  • robust RTW desktop enclosure

  • made in Germany

The unit shows age-appropriate cosmetic wear. A classic professional measuring instrument for digital studio equipment and vintage broadcast workstations.
